Curtain Wall
Curtain Wall

Technical Description

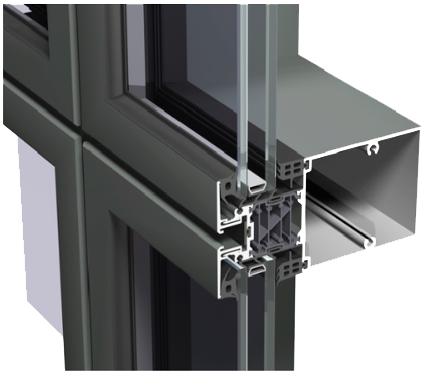

Concept wall- Winrad -20

Thermal Insulation


passive
Uf = 0.8 W/m²K

Air-Water-wind


Extreme
AE 1200 (1200Pa) / class E1200
(1200Pa) / E2400 (2400Pa)

Acoustics


Extreme
Rw(C;Ctr)=TuTi:47(-2;-5) dB

Weight Glass


Max 700 kg

Technical Description

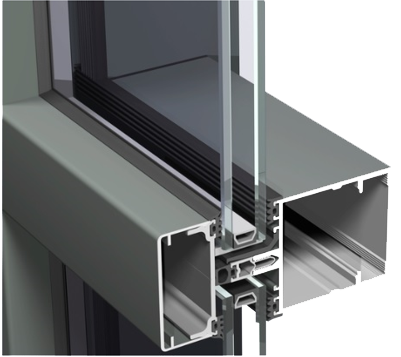

Concept wall- Winrad -22

Thermal Insulation


Hight
Uf = 3.9 W/m²K

Air-Water-wind


Extreme
AE 700 (700Pa) / RE1050(1050Pa)
class B5 (2000Pa)

Acoustics


hight
Rw(C;Ctr)=41(-2;-5) dB

Weight Element


Min 500 mm
Max 2000 mm

Product options

Personalise with the following options:
Concealed Drainage

Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

Balustrade

Balustrade

Safety can equal beauty.





Motorised

Motorised

Comfortable to use, even remotely.





Glass Corner

Glass Corner

Glass to glass connection without profiles obstructing the view

Solar Shading

Solar Shading

Options for passive cooling.
